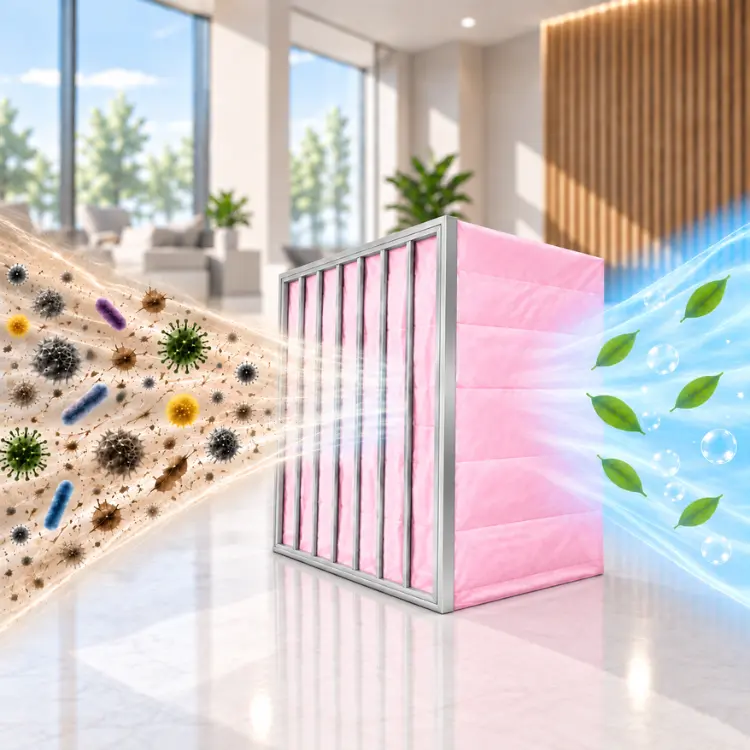

The Syn-Airo Pocket

Barotec Syn-Airo: Engineered for the Australian Climate. High-velocity airflow, moisture-resistant synthetic media, and pure, coastal-fresh air performance.” Barotec Syn-Airo: The advanced aerodynamic pocket filter engineered for maximum dust-loading and low resistance. Combining rugged synthetic media with superior moisture control to optimise HVAC energy efficiency and air clarity.

Specifications

Filter Category

Extended Surface Bag Filter / Pocket Filter

Efficiency (ISO 16890)

ePM10 60% / ePM10 70% / ePM10 80% / ePM10 85% / ePM10 90%

Filter Class (EN 779: 2012)

M5, M6, F7, F8, F9

Filter Class (ASHRAE 52.2: 2017)

MERV 10, MERV 12, MERV 13, MERV 14, MERV 15

Frame Material

Metal Frame G.I/SS/Al/Polystyrene (20/25mm Header)

Filter Media

Melt blown Synthetic

Recommended Final Pressure Drop

300 PA

Maximum Pressure Drop

450 PA

Maximum Relative Humidity

100%

Maximum Temperature

75°C

Flammability

UL 900 Classified

Mounting Options

Side and front access housings and frames are available

Advantages

Lorem Ipsum

Applications

Lorem Ipsum

Technical Data

SELECTION CHART – BAROTEC MEGA SYNPAK FILTER
Part Number	Filter Dimension (W × H × D)mm			Pockets	Rated Airflow (L/S)	Initial Pressure Drop (pa)					Media Area (m²)
	W	H	D			M5 / MERV 10 / ISO ePM10 60% (Pa)	M6 / MERV 12 / ISO ePM10 70% (Pa)	F7 / MERV 13 / ISO ePM10 80% (Pa)	F8 / MERV 14 / ISO ePM10 85% (Pa)	F9 / MERV 15 / ISO ePM10 90% (Pa)
	mm	mm	mm			M5 / MERV 10 / ISO ePM10 60% (Pa)	M6 / MERV 12 / ISO ePM10 70% (Pa)	F7 / MERV 13 / ISO ePM10 80% (Pa)	F8 / MERV 14 / ISO ePM10 85% (Pa)	F9 / MERV 15 / ISO ePM10 90% (Pa)
BTSY-24241506-(M5/M6/F7/F8/F9)	592	592	380	6	944	69	85	123	160	210	2.70
BTSY-24241508-(M5/M6/F7/F8/F9)	592	592	380	8	944	62	75	118	150	190	3.60
BTSY-12241504-(M5/M6/F7/F8/F9)	287	592	380	4	472	62	75	118	150	190	1.80
BTSY-24242006-(M5/M6/F7/F8/F9)	592	592	500	6	944	67	83	117	140	170	3.55
BTSY-24242008-(M5/M6/F7/F8/F9)	592	592	500	8	944	62	78	100	117	140	4.74
BTSY-12242003-(M5/M6/F7/F8/F9)	287	592	500	3	472	67	83	117	140	170	1.78
BTSY-12242004-(M5/M6/F7/F8/F9)	287	592	500	4	472	62	78	100	117	140	2.37
BTSY-24242206-(M5/M6/F7/F8/F9)	592	592	560	6	944	62	80	105	125	150	3.98
BTSY-24242208-(M5/M6/F7/F8/F9)	592	592	560	8	944	56	70	85	105	125	5.30
BTSY-24242212-(M5/M6/F7/F8/F9)	592	592	560	12	944	52	60	80	94	115	7.96
BTSY-12242203-(M5/M6/F7/F8/F9)	287	592	560	3	472	62	80	105	125	150	1.99
BTSY-12242204-(M5/M6/F7/F8/F9)	287	592	560	4	472	56	70	85	105	125	2.65
BTSY-12242206-(M5/M6/F7/F8/F9)	287	592	560	6	472	52	60	80	94	115	3.98
BTSY-24242406-(M5/M6/F7/F8/F9)	592	592	600	6	944	59	75	99	117	140	4.26
BTSY-24242408-(M5/M6/F7/F8/F9)	592	592	600	8	944	50	65	84	100	120	5.68
BTSY-12242403-(M5/M6/F7/F8/F9)	287	592	600	3	472	59	75	99	117	140	2.13
BTSY-12242404-(M5/M6/F7/F8/F9)	287	592	600	4	472	50	65	84	100	120	2.84
BTSY-24243006-(M5/M6/F7/F8/F9)	592	592	760	6	944	53	62	75	85	111	5.40
BTSY-24243008-(M5/M6/F7/F8/F9)	592	592	760	8	944	44	53	59	79	95	7.20
BTSY-12243003-(M5/M6/F7/F8/F9)	287	592	760	3	472	53	62	75	85	111	2.70
BTSY-12243004-(M5/M6/F7/F8/F9)	287	592	760	4	472	44	53	59	79	95	3.60
BTSY-24243606-(M5/M6/F7/F8/F9)	592	592	915	6	944	43	52	66	78	93	6.50
BTSY-24243608-(M5/M6/F7/F8/F9)	592	592	915	8	944	40	45	51	67	82	8.67
BTSY-12243603-(M5/M6/F7/F8/F9)	287	592	915	3	472	43	52	66	78	93	3.25
BTSY-12243604-(M5/M6/F7/F8/F9)	287	592	915	4	472	40	45	51	67	82	4.33
