Barotec True Blue

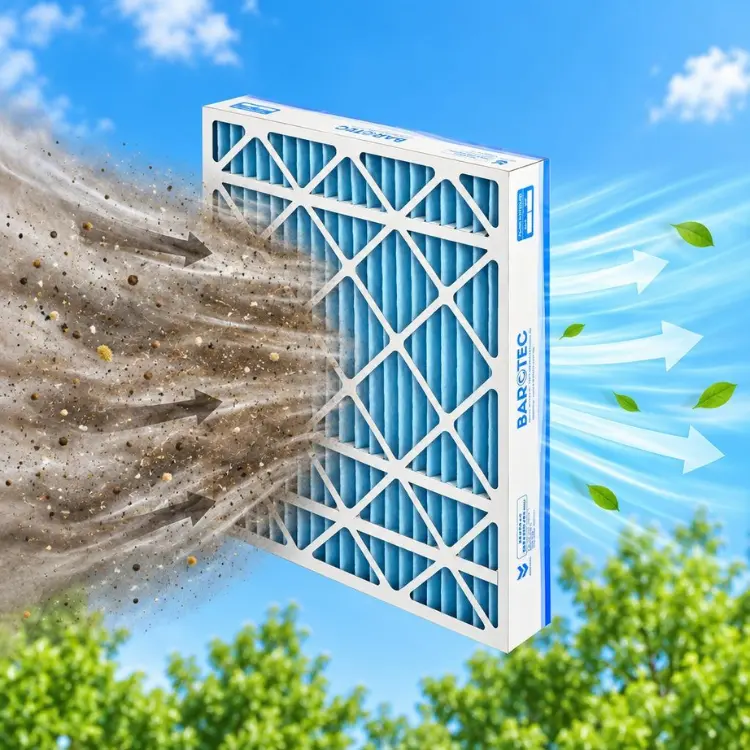

The Barotec Airo-AU55 F5 Cardboard Filter is a high-efficiency, pleated cardboard panel filter designed for general ventilation systems and commercial HVAC infrastructure. Functioning primarily as a secondary filter or high-performance pre-filter.

Specifications

Filter Category

Disposable Pleated High Flow Pre-Filter

Efficiency (ISO 16890)

ISO Coarse 65%

Filter Class (EN 779: 2012)

Filter Class (ASHRAE 52.2: 2017)

MERV 9

Filter Depth

1″, 2″ & 4″

Frame Material

Beverage Board water resistant type / Metal Frame

Filter Media

Non-woven synthetic type

Media Support

Expanded metal support grid on air exit side

Recommended Final Pressure Drop

1.20″ wg

Maximum Temperature

80 °C maximum during continuous operation

Flammability

UL 900 Classified / Equivalent

Mounting Options

Side and front access housings and frames are available

Advantages

Lorem Ipsum

Applications

Lorem Ipsum

Technical Data

BAROTEC SUPERPLEAT HF Selection Table
Part Number	Filter Class		Nominal Size (mm)	Rated Airflow	Initial Pressure Drop
Part Number	ASHRAE 52.2	ISO 16890	W × H × D	(L/S)	(Pa)
BTF5HCF120	F5/MERV9	Coarse 65%	592 × 592 × 22	944	80
BTF5HCF117	F5/MERV9	Coarse 65%	592 × 490 × 22	779	80
BTF5HCF105	F5/MERV9	Coarse 65%	592 × 287 × 22	472	80
BTF5HCF103	F5/MERV9	Coarse 65%	287 × 287 × 22	236	80
BTF5HCF220	F5/MERV9	Coarse 65%	592 × 592 × 44	944	58
BTF5HCF217	F5/MERV9	Coarse 65%	592 × 490 × 44	779	58
BTF5HCF205	F5/MERV9	Coarse 65%	592 × 287 × 44	472	58
BTF5HCF203	F5/MERV9	Coarse 65%	287 × 287 × 44	236	58
BTF5HCF411	F5/MERV9	Coarse 65%	592 × 592 × 98	944	48
BTF5HCF409	F5/MERV9	Coarse 65%	592 × 490 × 98	779	48
BTF5HCF402	F5/MERV9	Coarse 65%	592 × 287 × 98	472	48
BTF5HCF401	F5/MERV9	Coarse 65%	287 × 287 × 98	236	48
