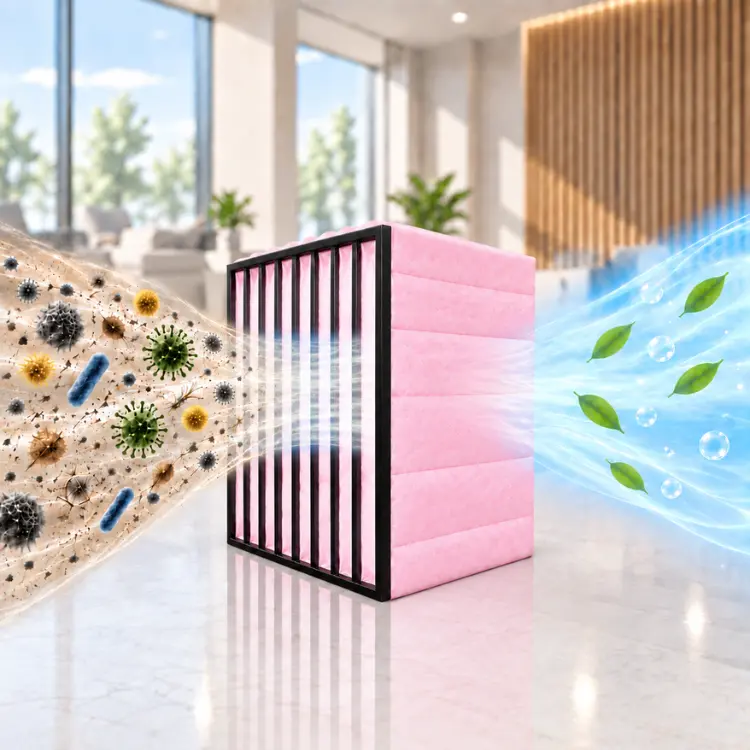

The Glas-Airo Pocket

Barotec Glas-Airo series – Engineer to utilises ultra-fine micro-glass fibre media to deliver exceptional thermal stability and stable fractional efficiency. The high-capacity micro-glass pocket filter precision-engineered for sub-micron particulate capture under high-velocity airflow. Utilizing an aerodynamically tapered, self-supporting pocket configuration to prevent bypass and maximize structural integrity at peak HVAC face velocities.

Specifications

Filter Category

Extended Surface Bag Filter / Pocket Filter

Efficiency (ISO 16890)

ePM10 60% / ePM2.5 60% / ePM1 60% / ePM1 70% / ePM1 85%

Filter Class (EN 779: 2012)

M5, M6, F7, F8, F9

Filter Class (ASHRAE 52.2: 2017)

MERV 10, MERV 12, MERV 13, MERV 14, MERV 15

Frame Material

Metal Frame – GI/SS/Al/Polystyrene (20/25mm Header)

Filter Media

Micro-Glass Fiber

Recommended Final Pressure Drop

300 PA

Maximum Pressure Drop

450 PA

Maximum Relative Humidity

100%

Maximum Temperature

80°C

Flammability

UL Classified Media

Mounting Options

Side and front access housings and frames are available

Advantages

Lorem Ipsum

Applications

Lorem Ipsum

Technical Data

SELECTION CHART – APTER MEGA GLASSPAK FILTER
Part Number	Filter Dimension (W × H × D)mm			Pockets	Rated Airflow (L/S)	Initial Pressure Drop (pa)					Media Area (m²)
	W	H	D			M5 / MERV 10 / ISO ePM10 60% (Pa)	M6 / MERV 12 / ISO ePM10 70% (Pa)	F7 / MERV 13 / ISO ePM10 80% (Pa)	F8 / MERV 14 / ISO ePM10 85% (Pa)	F9 / MERV 15 / ISO ePM10 90% (Pa)
	mm	mm	mm			M5 / MERV 10 / ISO ePM10 60% (Pa)	M6 / MERV 12 / ISO ePM10 70% (Pa)	F7 / MERV 13 / ISO ePM10 80% (Pa)	F8 / MERV 14 / ISO ePM10 85% (Pa)	F9 / MERV 15 / ISO ePM10 90% (Pa)
BTGP-24241506-(M5/M6/F7/F8/F9)	592	592	380	6	944	83	100	150	195	***	2.70
BTGP-24241508-(M5/M6/F7/F8/F9)	592	592	380	8	944	78	83	146	189	***	3.60
BTGP-12241504-(M5/M6/F7/F8/F9)	287	592	380	4	472	78	83	146	189	***	Z1.80
BTGP-24242006-(M5/M6/F7/F8/F9)	592	592	500	6	944	76	98	129	154	187	3.55
BTGP-24242008-(M5/M6/F7/F8/F9)	592	592	500	8	944	68	86	110	129	154	4.74
BTGP-12242003-(M5/M6/F7/F8/F9)	287	592	500	3	472	76	98	129	154	187	1.78
BTGP-12242004-(M5/M6/F7/F8/F9)	287	592	500	4	472	68	86	110	129	154	2.37
BTGP-24242206-(M5/M6/F7/F8/F9)	592	592	560	6	944	68	88	116	138	165	3.98
BTGP-24242208-(M5/M6/F7/F8/F9)	592	592	560	8	944	62	77	99	116	138	5.30
BTGP-24242212-(M5/M6/F7/F8/F9)	592	592	560	12	944	57	66	88	103	127	7.96
BTGP-12242203-(M5/M6/F7/F8/F9)	287	592	560	3	472	68	88	116	138	165	1.99
BTGP-12242204-(M5/M6/F7/F8/F9)	287	592	560	4	472	62	77	99	116	138	2.65
BTGP-12242206-(M5/M6/F7/F8/F9)	287	592	560	9	472	57	66	88	103	127	3.98
BTGP-24242406-(M5/M6/F7/F8/F9)	592	592	600	6	944	65	83	109	129	154	4.26
BTGP-24242408-(M5/M6/F7/F8/F9)	592	592	600	8	944	55	72	92	110	132	5.68
BTGP-12242403-(M5/M6/F7/F8/F9)	287	592	600	3	472	65	83	109	129	154	2.13
BTGP-12242404-(M5/M6/F7/F8/F9)	287	592	600	4	472	55	72	92	110	132	2.84
BTGP-24243006-(M5/M6/F7/F8/F9)	592	592	760	9	944	54	68	87	102	122	5.40
BTGP-24243008-(M5/M6/F7/F8/F9)	592	592	760	8	944	48	58	65	87	105	7.20
BTGP-12243003-(M5/M6/F7/F8/F9)	287	592	760	3	472	54	68	87	102	122	2.70
BTGP-12243004-(M5/M6/F7/F8/F9)	287	592	760	4	472	48	58	65	87	105	3.60
BTGP-24243606-(M5/M6/F7/F8/F9)	592	592	915	6	944	47	57	73	86	102	6.50
BTGP-24243608-(M5/M6/F7/F8/F9)	592	592	915	8	944	44	50	56	74	90	8.67
BTGP-12243603-(M5/M6/F7/F8/F9)	287	592	915	3	472	47	57	73	86	102	3.25
BTGP-12243604-(M5/M6/F7/F8/F9)	287	592	915	4	472	44	50	56	74	90	4.33
