Barotec Blue-Carbon

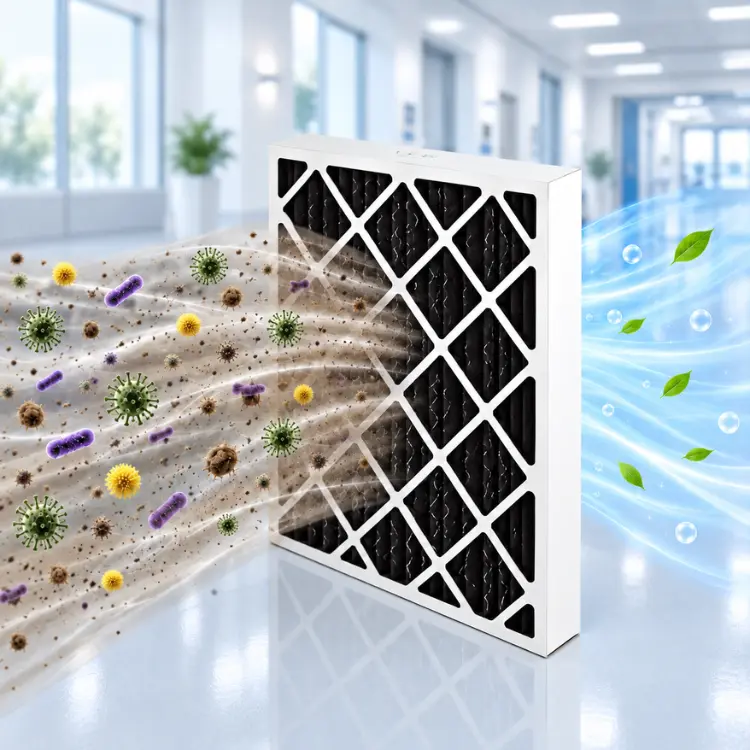

The Barotec Airo Blue-Carbon Cardboard Filter is a dual-action air panel engineered to capture particulate matter and neutralise gaseous pollutants simultaneously. It belongs to Barotec’s specialised cardboard pleated filter line, combining a structural cardboard frame with an activated carbon-infused media core to deliver odour mitigation alongside baseline particulate filtration.

Specifications

Filter Category

Medium Efficiency Rigid Panel Activated Carbon Filter

Filter Depth

2″ & 4″

Frame Material

Metallic Frame – G.I./SS/AL & Wet Strength Beverage Board

Filter Media

Durable non-woven Polyester base media impregnated with Activated Carbon Micro granules or Activated Alumina Impregnated with Potassium Permanganate or 50-50 Blended or separate media.

Efficiency (ISO 16890)

ISO COARSE 65%

Filter Class (EN 779: 2012)

Filter Class (ASHRAE 52.2: 2017)

MERV 8

Mesh Support (Optional)

PVC Coated Wire Mesh Support on both sides

Media Frame Bonding

Two Component Polyurethane Glue

Gasket (Optional)

Continuous Polyurethane or Neoprene type

Maximum Relative Humidity

< 70%

Maximum Temperature

10°C–50°C for best performance

Recommended Final Pressure Drop

1.2″ Wg

Target Gas

VOCs, SO2, H2S, NO2, NOx, Amines, Aldehydes

Advantages

Lorem Ipsum

Applications

Lorem Ipsum

Technical Data

BAROTEC CARBO SUPERPLEAT Selection Table – 2" Thick
Part Number	Size (W × H × D) mm	Airflow (L/S)	Pressure Drop (Pa)
BTCCSCF220	592 × 592 × 48	944	58
BTCCSCF217	592 × 490 × 48	779	58
BTCCSCF205	592 × 287 × 48	472	58

BAROTEC ACARBO SUPERPLEAT Selection Table – 4" Thick
Part Number	Size (W × H × D) mm	Airflow (L/S)	Pressure Drop (Pa)
BTCCHCF4110	592 × 592 × 98	944	48
BTCCHCF409	592 × 490 × 98	779	48
BTCCHCF402	592 × 287 × 98	472	48
