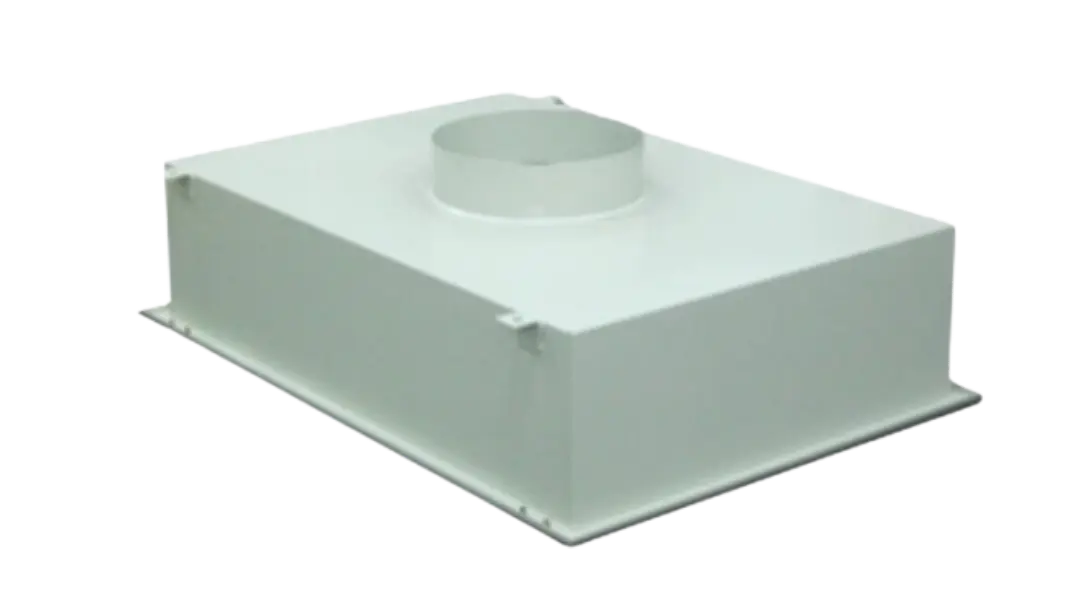

The Condo Pharma is a ducted laminar flow terminal housing for critical cleanroom and pharmaceutical applications, designed for zero air bypass. Built with a fully welded metal housing, it supports H13, H14, and U15 filters with GelSeal or gasket options. It offers room-side access, multiple diffuser types, and is fully leak tested for reliable, contamination-free performance.
| Data | Value |
|---|---|
| Category | Terminal HEPA Module-Replaceable HEPA type |
| Housing Box material | Galvanized steel or Mild Steel-Powder Coated /Stainless steel. Fully welded joints & Seams |
| Finish | RAL finish in various grade/epoxy coated-to prevent corrosion |
| Diffuser / Face Guard | Removable flush type with SS nuts or Hinged type. Type-Perforated/Swirl/adjustable vane/4-way diffusers |
| Spigot connection | Top inlet or Side inlet |
| Spigot | Ribbed circular spigot or square inlet connection on top. Inlet connections are continuously welded. |
| Air Distribution Plate (Optional) | Located at plenum inlet collar for uniform air distribution over filter air entry side. Plate made from SS/MS |
| Filter Installation & Mounting | Easily installed from room side by removing diffuser. Filter locking using quarter turn locks or quick clamping mechanisms with gasket compression inbuilt. |
| Volume Control Damper (Optional) | Provided at spigot side for controlling airflow. Damper is room side adjustable or adjustable from ceiling side. |
| Pressure Measurement port cum Aerosol Measurement (optional) | Measure filter replacement pressure drop at site & for upstream aerosol measurement |
| Aerosol Injection system (Optional) | Separate port for Aerosol injection from room side |
| Damper Control system (Optional) | Damper Operated from Room side by mechanical rod linkage |
| Aerosol Dispersion system (optional) | For even dispersion of aerosol over filter face area |
| Pressure Monitoring | DP switch for signaling filter replacement |
| Hanging Tabs | Fully welded hanging tabs used for ceiling suspension. 10mm Ø hole is provided for hanging. |
| Housing Box Insulation (Option) | Foil backed insulation-2” thick |
| Terminal Box Height | Standard height is 12”. Other Box height based on filter depths |
| Performance Testing | Each terminal module shall be fully leak tested. All welds and penetrations shall be bubble tested for leaks and must meet zero leak criteria. |
| Pre-Filter (Optional) | Additional chamber for Pre-Filter installation can be provided |
| HEPA Filter | Seamless PU Gasket type or Gel Seal type. Please refer Hepa filter technical catalogue for selection. |
| HEPA Grade as per EN 1822 | H13/H14/U15 |
| Maximum Pressure drop of filter | 450 Pa |
